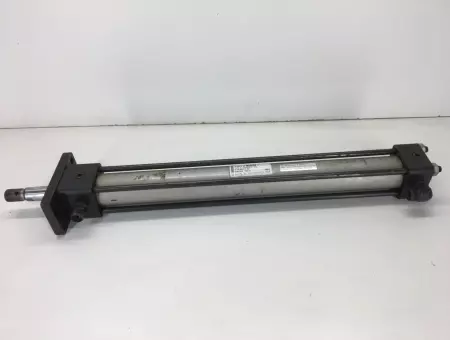

Parker 140H-8 2FY40BB415-BD Taiyo Hydraulic Cylinder, 40mm Bore 415mm Stroke

Heavy-duty hydraulic cylinder from the Parker Taiyo 140H-8 series, built for industrial equipment requiring high strength and long stroke performance. Designed for applications such as presses, injection machines, and automation systems. Technical Specifications: Model: 140H-8 2FY40BB415-BD Series: 140H-8 (JIS standard-based heavy-duty hydraulic cylinder) Cylinder Type: Double-acting Bore Size: 40 mm Rod Diameter: Typically 22 mm (standard for this bore size, confirm variant) Stroke Length: 415 mm Mounting Style: 2FY (Front flange mounting) Cushioning: BD = Both sides with adjustable cushion Operating Pressure: – Rated: 14 MPa (140 bar) – Max: 16 MPa (160 bar) Rod End Thread: Male thread (standard) Seals: High-pressure hydraulic seals (NBR standard, FKM optional) Fluid Medium: Hydraulic oil (ISO VG32–VG68) Ambient/Fluid Temperature: -10°C to +70°C (standard seals) Piston Speed: 8 to 500 mm/s Port Type: Rc thread (JIS B 0203) or optional metric/UNF Body Material: Precision honed steel tube with hard chrome plated steel rod Paint Finish: Standard industrial enamel Manufacturer: Parker Taiyo Made in: Japan Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   20.00

Depth:   6.00

Length:   28.00

Width:   6.00

SKU:   878 4.S7.19.1
