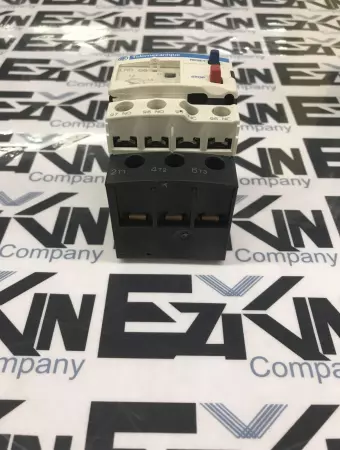

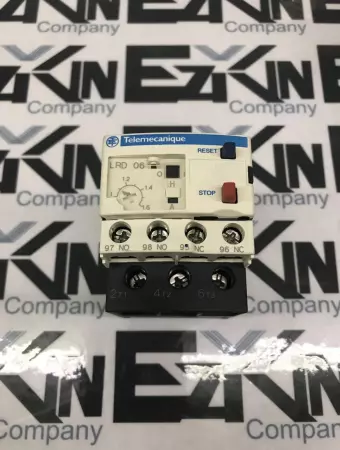

Telemecanique LRD 06 Overload Relay 690V Range 1.0-1.6 Amp

Thermal overload relay from Schneider Electric's Telemecanique brand, designed for protection of AC motors against overloads and phase failure. Suitable for integration with LC1D09 to LC1D32 contactors. Technical Specifications: Model: LRD06 Type: Thermal Overload Relay Current Adjustment Range: 1.0 – 1.6 A Rated Insulation Voltage (Ui): 690 V Operational Voltage (Ue): Up to 690 V AC Mounting: Direct mount on LC1D09–D18 contactors (or separate with accessories) Trip Class: Class 10A Reset Type: Manual and automatic reset options Auxiliary Contacts: 1 NC + 1 NO (snap action) Phase Failure Sensitivity: Yes Ambient Temperature Compensation: –5°C to +60°C Standards: IEC 60947-4-1, UL, CSA Connection: Screw terminals Applications: For use with 3-phase motors and motor starters Dimensions: Approx. 45 mm (W) × 70 mm (H) × 70 mm (D) Manufacturer: Telemecanique / Schneider Electric Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.10

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   914 4.S9.9.2
