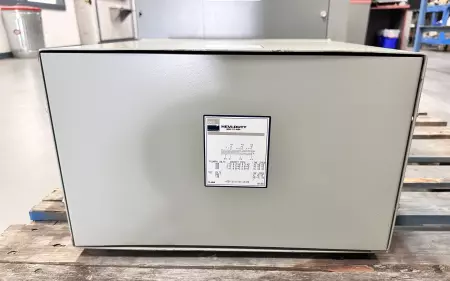

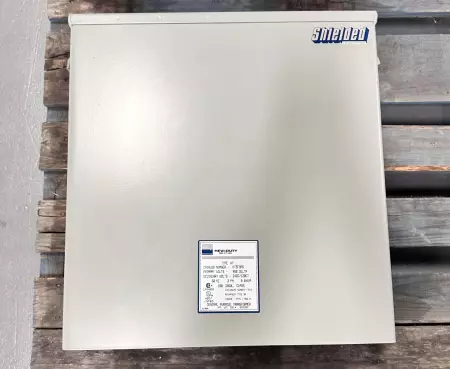

EGS HT5F9AS Hevi-Duty 3-Phase Transformer 9.0kVA

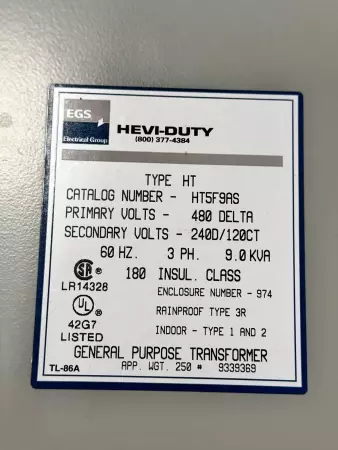

The EGS Hevi-Duty HT5F9AS is a general-purpose dry-type transformer designed for industrial and commercial distribution of power. It features durable construction and is suitable for indoor or protected outdoor use under rainproof Type 3R conditions. Catalog Number: HT5F9AS Type: HT Power Rating: 9.0 kVA Primary Voltage: 480 V Delta Secondary Voltage: 240D/120CT V Frequency: 60 Hz Phase: 3-phase Insulation Class: 180°C Indoor/Outdoor use Enclosure Type: Rainproof Type 3R Dimensions (H x W x D): 17.0 in x 20.0 in x 11.0 in Indoor Use Classification: Type 1 and Type 2 Certifications: UL Listed (42G7), CSA Certified (LR14328) Approximate Weight: 250 lbs Application: General purpose power distribution

Condition: Used

Weight:   233.00

Depth:   17.00

Length:   17.00

Width:   10.00

SKU:   96966 4.R2.7.1
