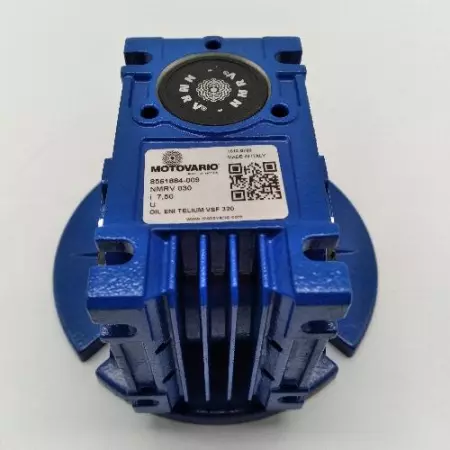

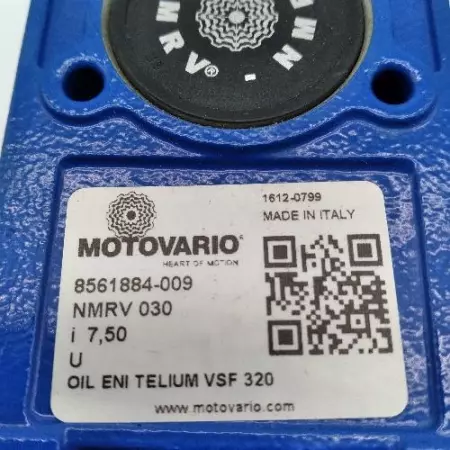

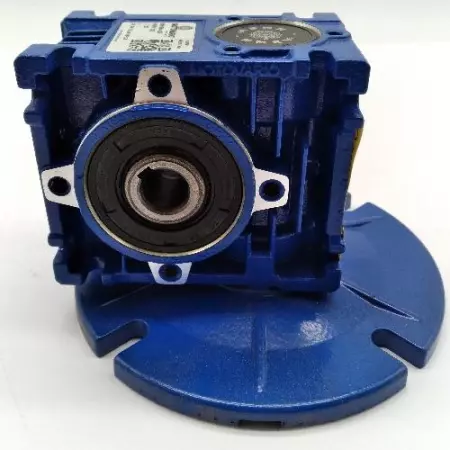

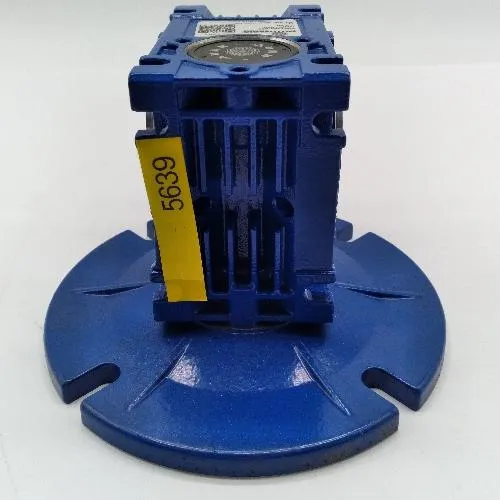

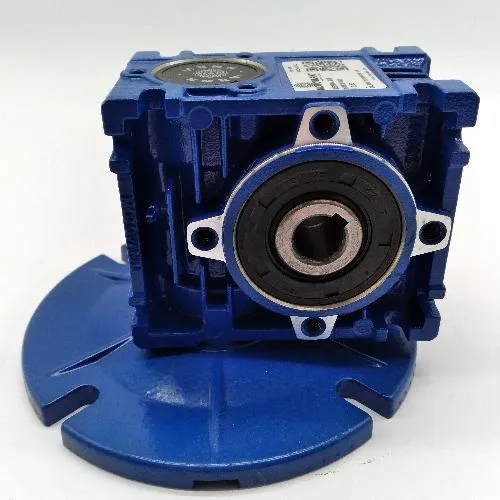

Motovario 8561884-009 NMRV 030 Right Angle Gear Reducer 7.5:1 Ratio

The Motovario 8561884-009 is a compact NMRV 030 series right-angle worm gear reducer designed for efficient torque transmission in a wide range of industrial applications. It features a 7.5:1 gear ratio and offers quiet operation with a high level of reliability in continuous-duty use. Gearbox type: Worm gear reducer Model: NMRV 030 Part number: 8561884-009 Mounting position: Universal (B3, B14, B5) Gear ratio: 7.5:1 Output torque (nominal): up to 21 Nm (varies with input) Input type: IEC B5 flange Input bore: 9 mm (hollow shaft for electric motor coupling) Output shaft: Hollow shaft, 14 mm diameter Material – Housing: Die-cast aluminum alloy Material – Worm gear: Steel Material – Worm wheel: Bronze Lubrication: Synthetic oil (lubed for life) Operating temperature: -15 to +40 °C Protection rating: IP55 Backlash: Standard precision Efficiency: ~70% at full load Noise level: ≤ 55 dB(A) Weight: Approx. 1.4 kg Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   97155 4.S3.2.2
