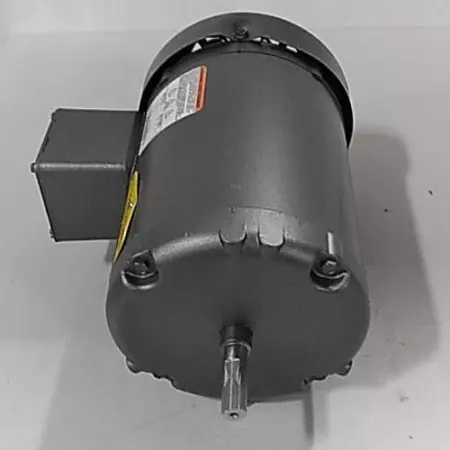

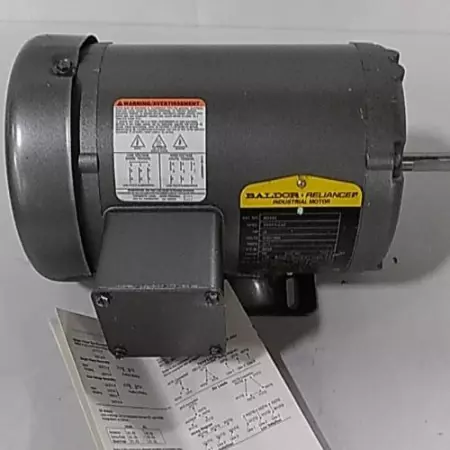

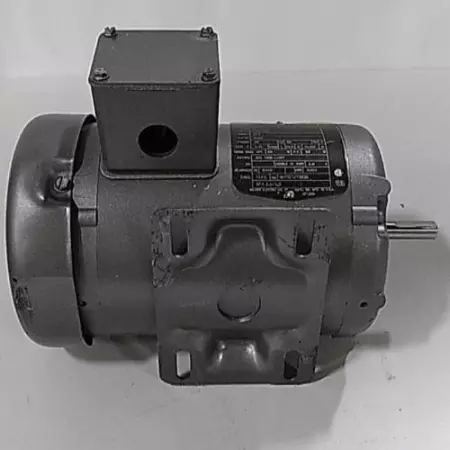

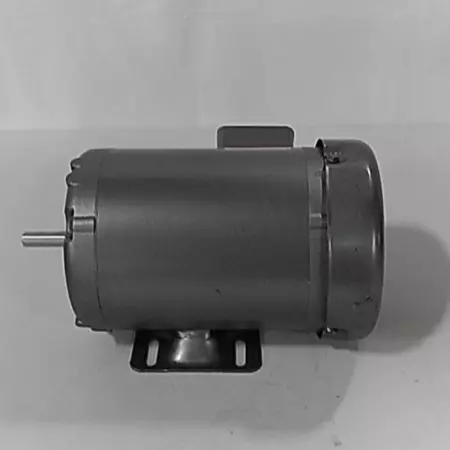

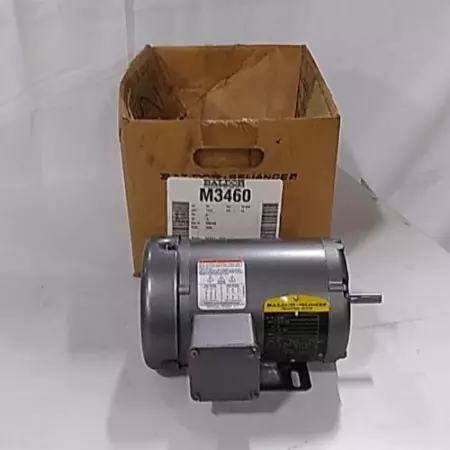

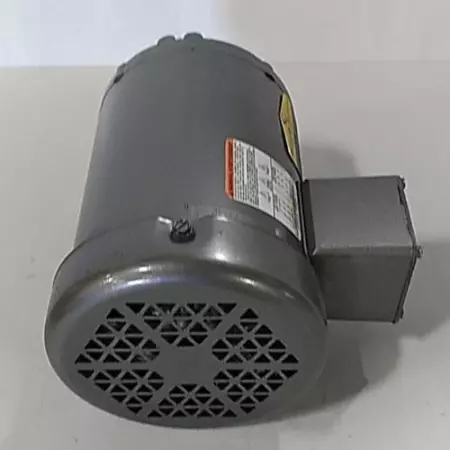

Baldor M3460 AC Motor 0.5HP Frame 48

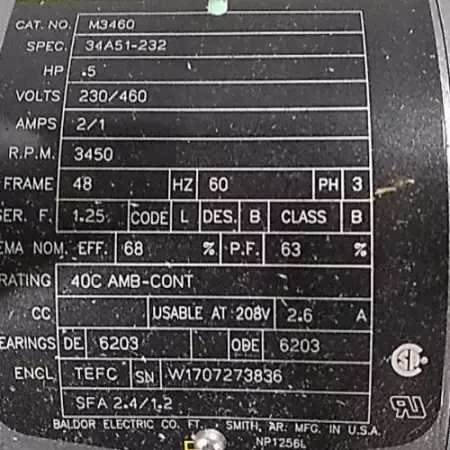

The Baldor M3460 is a general-purpose three-phase AC induction motor designed for use in light industrial and commercial applications. It features a compact NEMA 48 frame, making it suitable for installations where space is limited. Technical Specifications Manufacturer: Baldor Electric Company Model: M3460 Motor Type: AC Induction Motor (Single-Phase) Horsepower: 0.5 HP (1/2 HP) Voltage: 230/460 VAC Full Load Amperage: ~2.0 / 1.0 A Frequency: 60 Hz Speed: 3450 RPM Frame Size: 48 (NEMA) Mounting: Rigid base (may also be convertible to C-face) Enclosure: ODP (Open Drip Proof) Insulation Class: B Service Factor: 1.25 Duty Cycle: Continuous (rated for continuous operation at full load) Shaft Diameter: Typically 5/8 in (verify with nameplate or spec sheet) Bearings: Pre-lubricated ball bearings Rotation: Reversible Applications: Pumps, fans, conveyors, compressors, light machinery

Condition: New – Open box

Weight:   25.00

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   97216 4.R6.8.2
