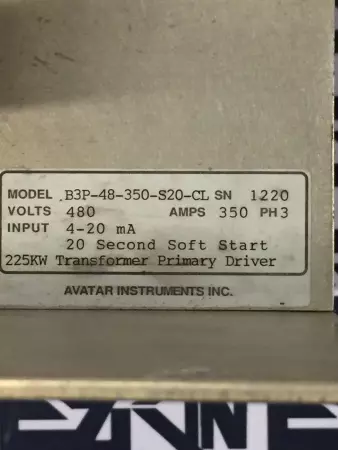

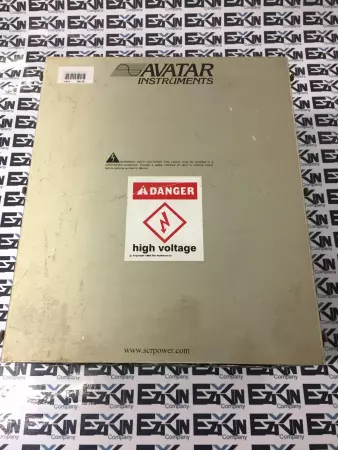

Avatar Instruments Inc. B3P-48-350-S20-CL 3-Ph Power Controller, 480V 350Amp

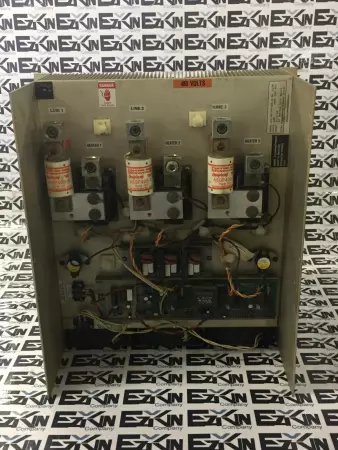

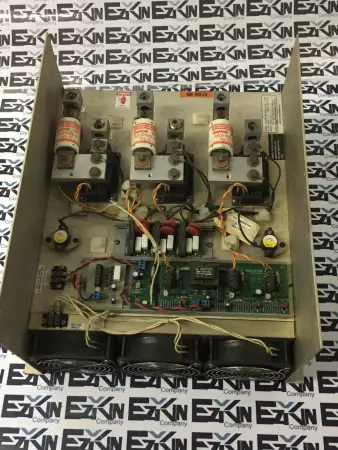

The Avatar Instruments B3P-48-350-S20-CL is a three-phase SCR power controller designed for high-power transformer-coupled loads. It operates at 480V AC and can handle 350 amps, making it suitable for industrial applications that require precise and reliable power modulation. Technical Specifications: Voltage Rating: 480 VAC, 50/60 Hz Load Capacity: 350 Amps Output Voltage: Adjustable from 0 to 97% of the input voltage Control Signal: 4 to 20 mA at 6V DC, 300 Ohms Soft Start: 20-second soft start function (S20) to prevent inrush current Current Limit: Built-in current limiting feature (CL) for safety and equipment protection Performance & Design Features: Linearity: Less than 5

Condition: Used

Weight:   53.80

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   1615 4.S8.15.1
