Hitran D3002762H6 General Purpose Transformer, 3-Phase, 27kVA

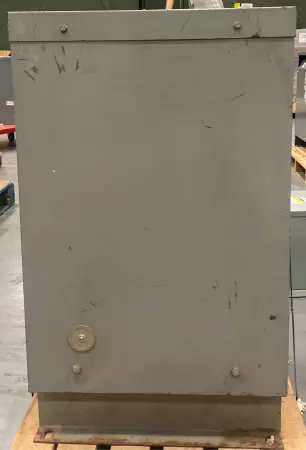

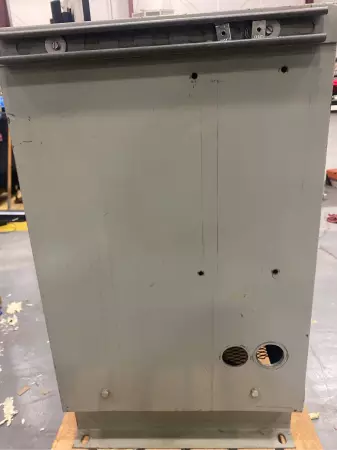

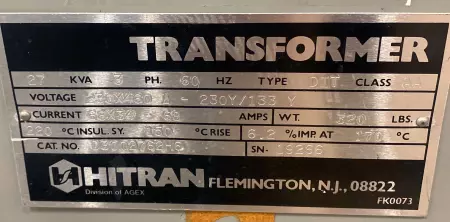

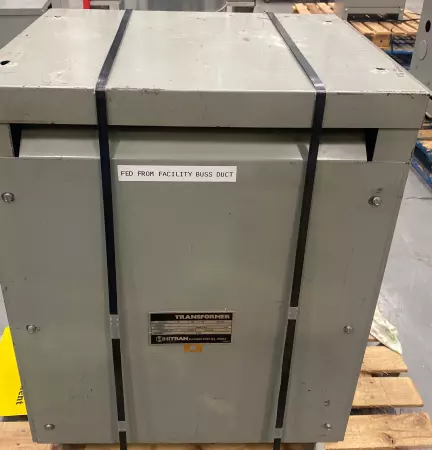

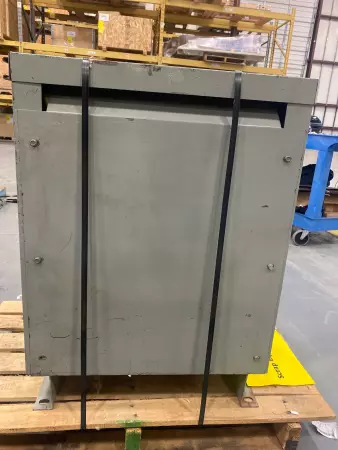

Hitran D3002762H6 is a general-purpose dry-type transformer designed for three-phase power distribution. It is suited for indoor industrial and commercial applications requiring reliable voltage conversion and isolation. Type: DIT (Dry-type Industrial Transformer) Power Rating: 27 kVA Phase: 3-phase Frequency: 60 Hz Primary Voltage: 230 × 460 V Secondary Voltage: 230Y/133 V Primary Current: 68 × 34 A Secondary Current: 68 A Impedance: 6.2% at 170 °C Temperature Rise: 150 °C Insulation System: 220 °C Cooling Class: AA (air-cooled, natural convection) Weight: 320 lbs Catalog Number: D3002762H6 Serial Number: 19266 Manufacturer: Hitran, Division of AGEX, Flemington, NJ, 08822 Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   370.00

Depth:   48.00

Length:   48.00

Width:   48.00

SKU:   260239 5.R2.FLOOR
