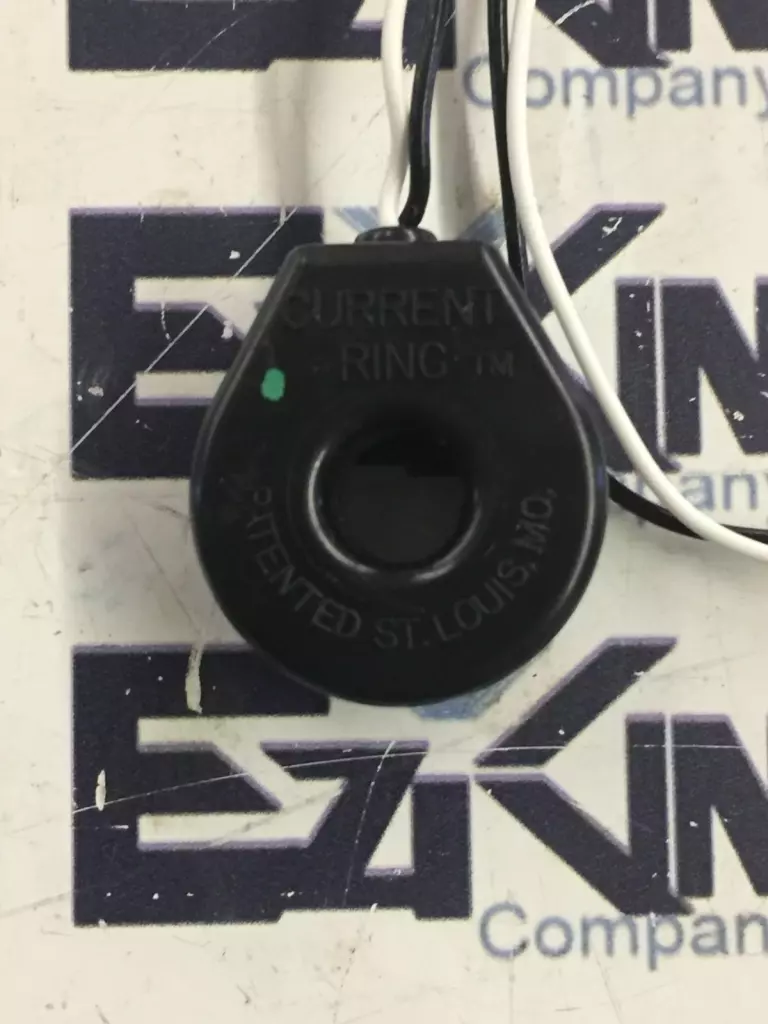

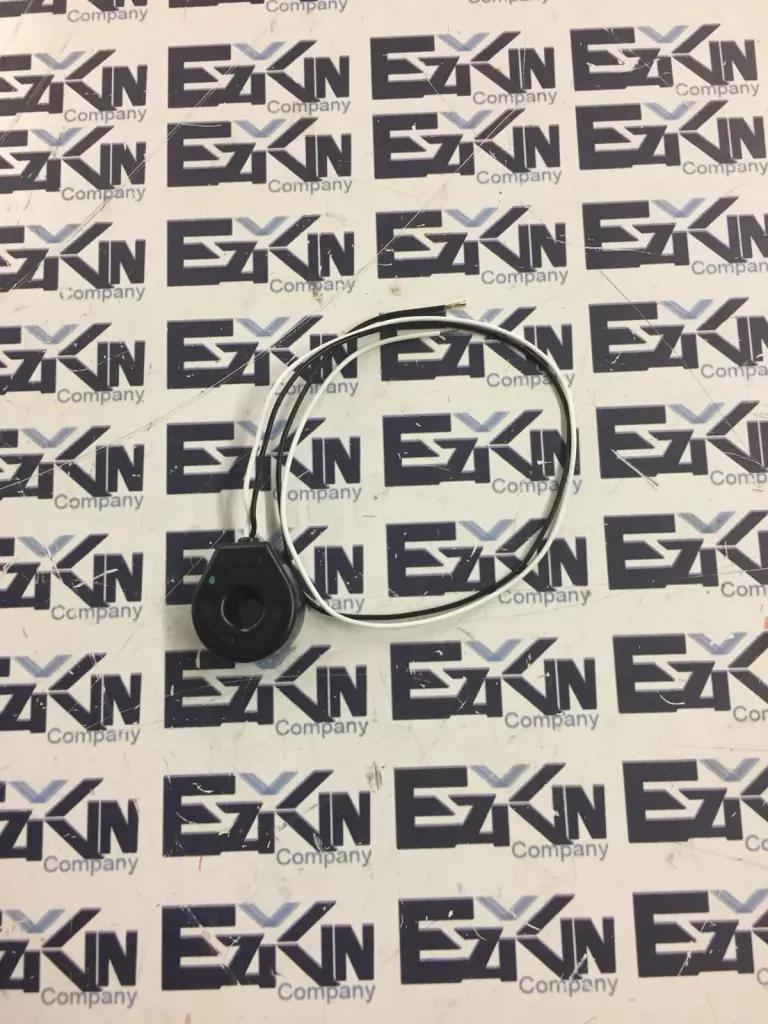

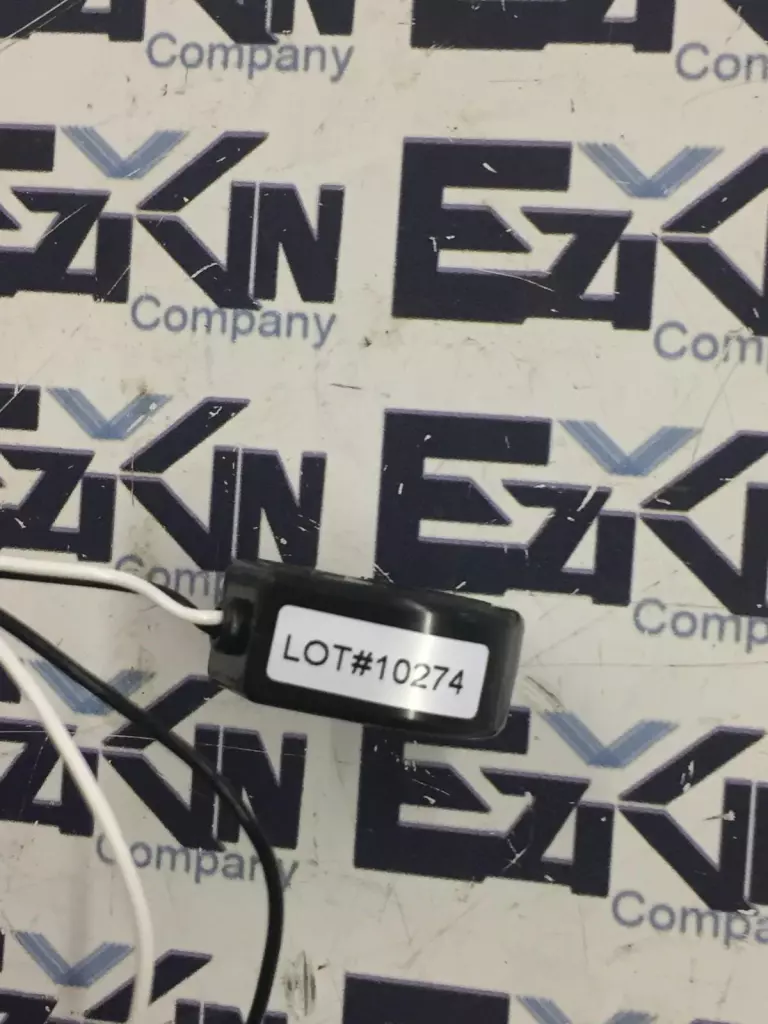

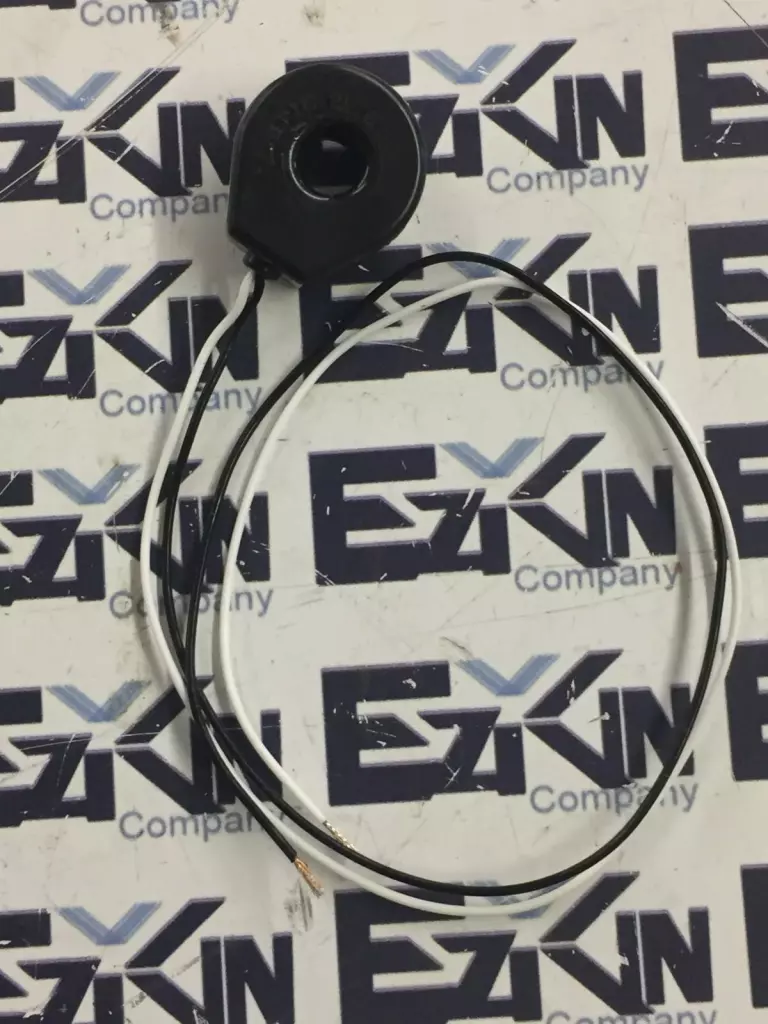

CR Magnetics CR-19 Current Ring Transformer

Compact current transformer designed for current sensing, monitoring, and control in industrial and commercial applications. Ideal for panel-mounted installations and compatible with analog and digital systems.

Model: CR-19
Manufacturer: CR Magnetics
Type: Ring-type (solid-core) current transformer
Primary Current Range: Up to 100A AC (model-dependent)
Output: 0–1A or 0–5A (varies by sub-model)
Accuracy: ±1% (typical)
Frequency Range: 50–400 Hz
Dielectric Strength: 2500V RMS
Mounting Style: Panel mount
Window Size (Aperture): Approx. 0.75" (19 mm) diameter
Temperature Range: -40°C to +85°C
Insulation Class: 600V, UL Recognized
Applications: Motor monitoring, HVAC, industrial automation, energy management systems Please review pictures carefully and let us know if you have any questions!
